Collaborative Robot
●Standardization, customization, flexibility, and ease of use
●Excellent précision motion control performance
●Excellent précision motion control performance
● Improve the quality system and achieve excellence in quality
 |
|
|
|
I'm Online Chat Now
3KG 5KG 10KG Playload Robots Stacking Palletizing Collaborative Robot Pick and Place Cobot Robot
|
Product Details:
|
Detailed Product Description
Company Profile
Product Description
Provide higher productivity for modern production.
Palletizers are widely used in the palletizing industry.
Palletizing robots greatly save labor and space.
The palletizing robot is flexible, precise, fast and efficient and stable
We have more robots with various specifications and price, please contact us for more details
We have more robots with various specifications and price, please contact us for more details

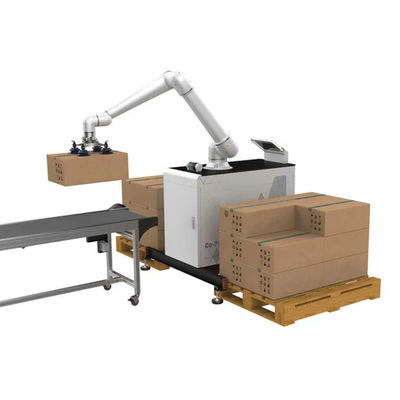

Co-Palletizer Description
●load - 20kg
●Working radius - 1777.5mm
●Horizontal distance (pallet spécifications) - 1200mm*1200mm
●Joint maximum speed - J1/2: 110 7s J3: 150 7s J4/5/6: 180 7s
●Repetitive positioning accuracy - 0.1mm
●communication Analog quantity, Digital quantity, MODBUS RTU,
MODBUSTCP, CAN, RS485
MODBUSTCP, CAN, RS485
● Protection level - IP54(arm)
●temperature range - 0-50 °C
●Land occupation area - 1530mm*1480mm
●Maximum power consumption - 3000W
●Electric powered - 220V
●Stacking speed - 8-12/min
●Stacking height - 2080mm
●Compatible surface - Carton, smooth surface
●Product applications- pallet, positioning
We have various Robot optional.
please contact us to taylor a solution for you to boost the productivity
Specification
Product Name | collaborative robot |
Number of axes | 6-axis |
Mounting | floor-mounted, ceiling-mounted, wall-mounted |
Protection level | IP54 |
Payload | 20KG / 12KG/ 10KG/5KG/3KG/1KG/0.5KG optional |
Reach | 1,777.5 mm /1620mm / 1400mm / 919mm / 575.8mm |
Operating temperature | 0°C - 50°C |
Packing & Delivery
Why Choose Us
FAQ
Q1: Are you factory or trading company?
A1: We are the factory, we doing this industry over 10 years.
Q2: How to choose suitable packaging machine?
A2: please advise your material and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How to ensure the quality of the machine?
A3: We usually delivery the machine after successful inspection in our factory. We have our own quality control
department,beforethe delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q4: How to install the equipment?
A4: We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay.
Q5: What's your payment way?
A5: T/T by bank account directly, or by Alibaba trade assurance service, or other payment method
