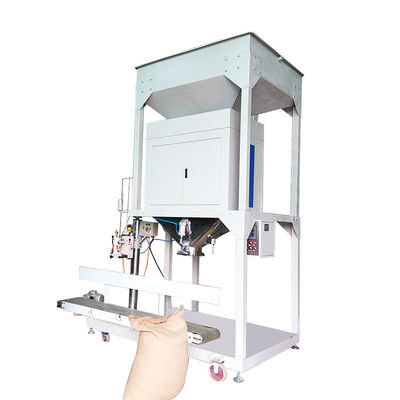

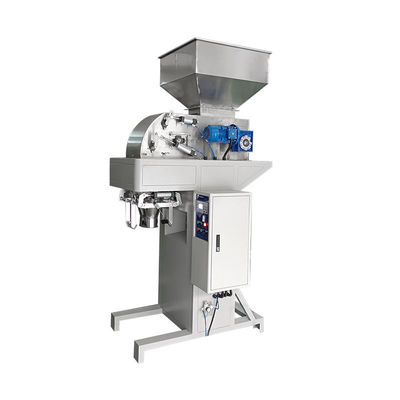

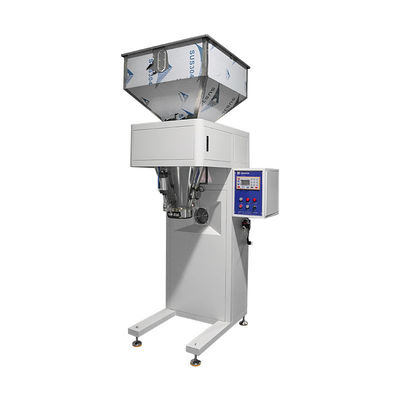

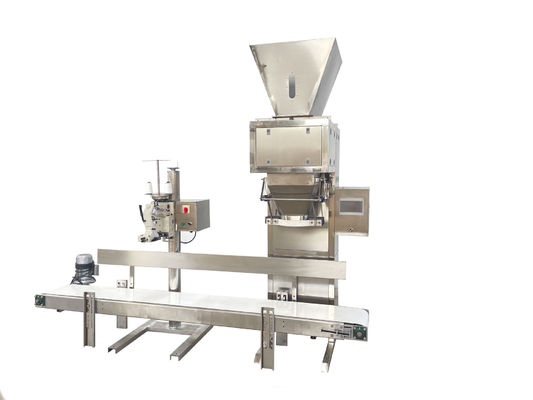

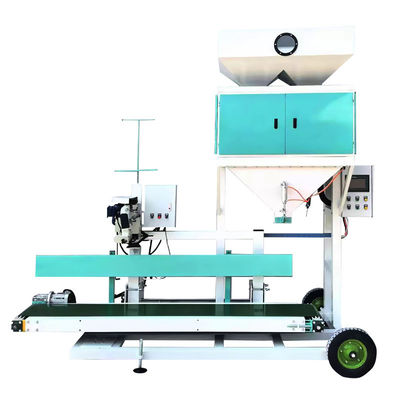

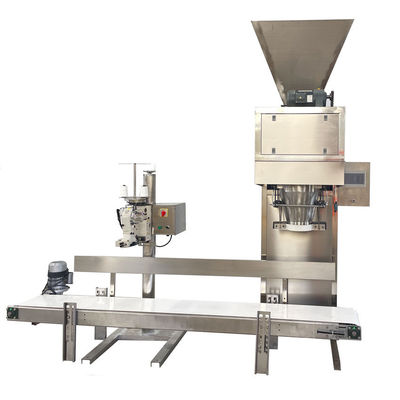

Customized Semi Automatic Packing Machine System 10-50kg Weighing Filling Dosing Stich Packaging Machine for Powder
Detailed Product Description
Company Profile
Product Description
This is a very practical packing machine on the market at present,with reasonable structural design to ensure packaging efficiency and product quality.The compact body size save space and is suitable for a variety of production enviroments.at the same time,the machine is easy to operate,easy to maintain,so that you can easy to control.
Fully Automatic and Semi Automatic are optional
When the packaging machine enters the automatic operation state,
When the packaging machine enters the automatic operation state,
the weighing control system opens the feeding door to start feeding.
The feeding device is a fast and slow feeding mode.
When the material weight reaches the set value of fast feeding,
the fast feeding is stopped and the slow feeding is maintained.
When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process.
At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag, then unloading door of the weighing bucket will be closed automatically;
after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next processis way, it operates automatically.
How does Packing Machine Work:Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process
Advantage:
-Wide packing range, high precision, it can match well with conveyor and sewing machine.
-Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
-The main material body is carbon steel, with painted plastic. And material contact part can be 304 Stainless Steel or 316 Stainless Steel
Semi-automatic machine also can be customized
it can be customized according to the client's requirementsneeds
Details Images
Steel structure support frame
The frame is made of excellent carbon hairpin and
stainless steel，It has very good linearity and fully
ensures the stability of the operation of the ton
package equipment.
Layout of the control cabinet
Cabinet interior layout is clear, functional notes are complete, easy to maintain and adjust, imported control components make the machine more efficient and stable
Automatic bag clamping at the feed opening
Pneumatic white pocket clamping device is used to ensure ultra-long continuous accurate cutting and save manpower
Automatic wire breaking sewing machine
The sewing machine adopts all-copper core motor with strong effect, which can adjust the tightness of the press line according to the thickness of the material, simplify the design, and is not easy to malfunction.
Specification
Bag length range | 270-1200mm |
Bag width range | 210-800mm |
Packing Capacity | 300-800 bags/h |
Weighing Range | 20-50kg or Customized |
Quantify Precision | ±0.2% |
Power | 4.3kw |
Power Supply | AC 220V/380V 50 HZ 1P/3P Customized |
Air Source | 0.4~0.6MPa 0.36m³/min |
Automatic Type | Full Automatic and Semi Automatic Optional |
Full Automatic | Automatic bad loading, weighing, bagging, sealing, conveying, palletizing 300-800bags/hour |
Semi Automatic | one person is required to operate, automatic weighing, bagging,sealing, conveying, palletizing 500-1000bags/hour |
Application Materials | Applicable for packing granular or particle materials such as chemistry, fertilizer, grain, rice, sand, wood pellets, animal feed,urea, phosphate, PP, PE granules, construction materials,etc |
Application Materials
Packing & Delivery
Why Choose Us
FAQ
Q1: Are you factory or trading company?
A1: We are the factory, we doing this industry over 10 years.
Q2: How to choose suitable packaging machine?
A2: please advise your material and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How to ensure the quality of the machine?
A3: We usually delivery the machine after successful inspection in our factory. We have our own quality control
department,beforethe delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q4: How to install the equipment?
A4: We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay.
Q5: What's your payment way?
A5: T/T by bank account directly, or by Alibaba trade assurance service, or other payment method
